1.1. Definition and Fundamental Characteristics of Direct Current

Direct Current (DC) is defined by the unidirectional flow of electric charge.[1, 2] In a DC circuit, electrons maintain a steady movement in a single direction, typically from the negative terminal to the positive terminal of a power source.[1] This contrasts fundamentally with Alternating Current (AC), where the direction of electron flow periodically reverses.[1] The concept of direct current dates back to 1800, when Italian physicist Alessandro Volta first produced it using his battery, the Voltaic pile, although the precise nature of current flow was not fully understood at that time.[2]

While the term "DC" literally stands for "direct current," it often broadly refers to systems characterized by "constant polarity".[2] This implies that even if the voltage itself may fluctuate over time, such as in the raw output of a rectifier or a fluctuating voice signal on a telephone line, the polarity remains consistent.[2] However, in the context of a stable DC voltage source, both the voltage across it and the current flowing through it are constant.[2] DC current can traverse various mediums, including conductors like wires, semiconductors, insulators, and even a vacuum, as observed in electron or ion beams.[2]

1.2. Distinction between DC Grids and Alternating Current (AC) Grids

The fundamental difference between AC and DC power lies in their flow dynamics. AC electricity oscillates, a characteristic that historically made it suitable for long-distance transmission through transformers. Conversely, DC power maintains a unidirectional flow, which is inherently beneficial for electronic devices and energy storage applications.[3]

AC power is characterized by periodic direction reversal, typically exhibiting sinusoidal waveforms where voltage alternates between positive and negative.[3] Its frequency, standardized at 50Hz or 60Hz depending on the region, is critical for compatibility within transmission systems.[3] The alternating nature of AC simplifies voltage transformation via transformers, a key factor in its historical adoption for large-scale, distant power transmission.[3] In contrast, DC systems maintain a unidirectional flow of electrons, providing a consistent voltage or current over time. This inherent stability allows DC systems to circumvent frequency-related losses, although historically, they often necessitated local power sources such as batteries or rectifiers for practical use.[3]

A critical observation is the historical "War of Currents" and its modern re-evaluation. In the late 19th century, AC power gained widespread adoption due to its superior transmission capabilities over long distances, primarily facilitated by the ease of voltage transformation using transformers.[4] At that time, the technology for efficiently transforming DC voltage and safely interrupting DC circuits was nascent.[5, 6] However, the energy landscape has profoundly changed. Modern power electronics, including advanced converters and solid-state circuit breakers, have largely overcome these historical limitations.[7, 8] This technological evolution has enabled DC to become a viable, and in many contemporary applications, a superior alternative. This is not to suggest a complete replacement of AC, but rather an optimization of energy flow within a hybrid system where DC plays an increasingly vital role. The re-evaluation of DC's capabilities reflects a paradigm shift driven by new energy demands and technological advancements.

Key Distinctions (AC vs. DC)

2.1. Enhanced Energy Efficiency and Reduced Losses

A primary advantage of DC power lies in its inherent energy efficiency, as it loses less energy when transmitted through electrical cables compared to AC power.[5] This efficiency gain is particularly significant given that approximately 80% of modern electronic devices, such as LED lights, computers, and electric vehicles, operate natively on DC power.[5, 9] In traditional AC-supplied environments, these devices necessitate an internal conversion from AC to DC, a process that is often inefficient and results in considerable energy waste, especially in large commercial buildings.[5, 9] DC grids, by directly supplying power in DC form, eliminate these multiple, inefficient AC-DC and DC-AC conversion stages, thereby leading to higher overall system efficiency and a substantial reduction in energy wastage.[4, 7, 10, 11, 12, 13, 14]

Furthermore, DC systems inherently do not contend with reactive power issues, a common source of losses and voltage instability in AC grids.[3, 7, 10, 13] The absence of reactive power simplifies system design and operation, contributing to improved efficiency. Another notable benefit is the elimination of the "skin effect," a phenomenon in AC systems where current tends to concentrate near the surface of a conductor, effectively increasing its resistance and leading to greater losses.[6, 10] In DC systems, current distributes uniformly across the entire cross-section of the conductor, allowing for its full utilization. This characteristic either reduces losses for a given cable size or permits the use of smaller diameter cables for the same power delivery, leading to material savings.[6, 7, 10] For high-voltage direct current (HVDC) transmission, additional advantages include the absence of dielectric losses, reduced corona loss, and minimized interference with communication circuits, further enhancing efficiency over long distances.[6] HVDC is particularly efficient for long-distance, point-to-point power transfers and for submarine or subterranean applications where AC systems incur significantly higher electrical losses.[3, 15, 16]

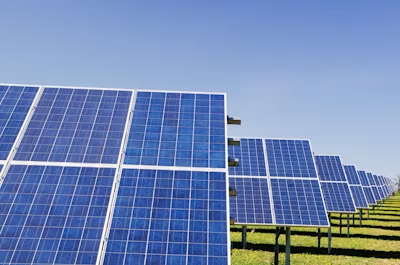

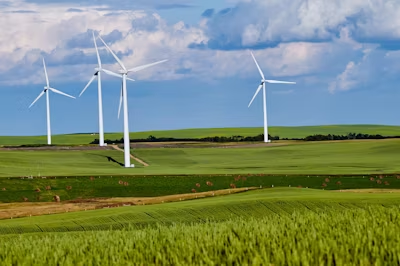

2.2. Seamless Integration with Renewable Energy Sources and DC Loads

The shift towards DC grids is strongly propelled by their natural compatibility with a growing number of sustainable technologies and modern electronic loads. Many renewable energy sources, such as photovoltaic (PV) systems (solar panels) and certain wind turbines, inherently generate direct current.[7, 14, 17] Similarly, a vast array of modern electronic devices, including LED lighting, computers, and electric vehicles (EVs), fundamentally operate on DC.[4, 5, 9, 13, 14, 17]

Connecting these DC-native generators and loads directly to a DC grid circumvents the need for multiple, inefficient DC/AC or AC/DC conversion steps.[5, 7, 10, 11, 12, 13, 14, 18] This direct compatibility significantly improves overall system efficiency by minimizing energy losses that would otherwise occur during these conversions. Energy storage systems, predominantly batteries, are crucial for managing the intermittent nature of renewable energy sources and ensuring grid stability; these systems also inherently operate on DC power.[7, 10, 11, 13, 14] Their seamless integration into a DC distribution system further enhances global energy efficiency. The rapid proliferation of electric vehicles, which charge their batteries with DC, also necessitates robust charging infrastructure. Local DC grids offer an efficient solution by directly connecting batteries and DC charging stations, thereby avoiding conversion losses and enabling faster deployment of charging facilities, particularly in off-grid or remote areas.[7, 10, 14, 17, 19]

2.3. Improved Power Quality and Stability

DC power systems inherently provide constant voltage levels, which eliminates many power quality issues commonly associated with AC grids, such as voltage fluctuations, harmonics, and power factor correction problems.[7, 10, 11, 13] This intrinsic stability ensures a more consistent and reliable power supply, which is crucial for safeguarding sensitive electronic equipment from potential damage caused by power surges or irregularities.[11]

Furthermore, DC grids significantly simplify synchronization requirements. While AC networks demand precise synchronization of amplitude, frequency, and phase angle for interconnection, DC grids only require voltage amplitudes to match.[3, 7, 10, 13] This characteristic makes the integration of asynchronous systems considerably easier.[3] High-Voltage Direct Current (HVDC) systems, in particular, possess the unique capability to interconnect unsynchronized AC networks, which is invaluable for facilitating inter-regional and international power exchange.[2, 15, 16] Beyond simple interconnection, HVDC technologies also provide extremely rapid stability control and precise power flow management, thereby enhancing the overall flexibility and resilience of the power grid.[16]

2.4. Space and Cost Savings

The adoption of DC power systems can lead to substantial reductions in material usage and overall costs. The elimination of multiple AC-DC conversion stages in DC grids translates directly into fewer components, such as filters and power converters, reducing the material required for system construction.[7] Moreover, due to the absence of the skin effect, DC cables can be dimensioned with smaller diameters for the same power delivery compared to AC cables, as the entire cross-section of the conductor is efficiently utilized.[6, 7, 10] This can result in significant material savings, potentially up to 40% less copper and insulation material for equivalent performance.[14]

DC equipment, including rectifiers, inverters, and converters, tends to be more compact and lightweight than its AC counterparts.[11] This smaller physical footprint allows for optimized space utilization, which is particularly advantageous in space-constrained applications such as telecommunications facilities or data centers.[11] The reduced complexity inherent in DC systems, stemming from fewer conversion stages and simpler control requirements, can also lead to streamlined operations, lower installation and maintenance costs, and substantial long-term financial savings.[11, 19, 20] Studies have indicated that DC-powered data centers, for instance, can achieve notable savings compared to their AC counterparts due to improved system efficiency.[21]

The economic and environmental imperative for DC adoption is becoming increasingly clear. The advantages of DC grids—enhanced efficiency, seamless renewable integration, improved power quality, and potential for cost savings—are not merely technical benefits; they directly address critical global challenges. Higher efficiency translates to less energy waste, which in turn reduces operational costs for businesses and contributes to lower carbon emissions by maximizing the output from renewable sources.[5, 11, 12, 21] The direct and seamless integration of solar and wind power, which are often DC-native, is fundamental to achieving ambitious decarbonization goals.[11, 12, 14, 22, 23, 24] Furthermore, the ability to reduce material usage through optimized cable designs and fewer components aligns directly with broader objectives of resource conservation and sustainability.[7, 14] Therefore, the increasing shift towards DC is not solely a technological advancement but an economic and environmental necessity for building a more sustainable and resilient energy future. This suggests that regulatory bodies and industry alliances will increasingly advocate for and implement DC solutions to meet climate targets and optimize infrastructure investments.

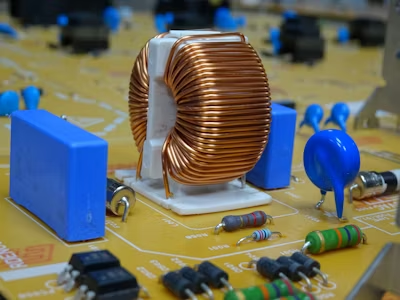

3.1. Low Voltage DC Grids

Low Voltage DC (LVDC) grids are particularly well-suited for localized power distribution where many end-use devices operate on DC. In residential and commercial buildings, a significant portion of modern electronic loads, such as LED lighting, televisions, computers, smartphones, and HVAC systems utilizing DC motors, inherently require direct current.[4, 5, 9, 14, 17] Supplying these devices directly with DC eliminates the need for inefficient internal AC-DC conversions, leading to substantial energy savings at the point of consumption.[4, 5, 7, 9, 11, 12, 13, 14, 17] Pilot projects, such as intelligent DC systems for public lighting in the Netherlands, have demonstrated these benefits, including energy savings and extended component lifetimes.[25]

Data centers and telecommunication facilities are prime candidates for DC microgrids due to their critical need for high reliability and efficiency. Servers and telecom equipment primarily run on DC, making DC distribution ideal by reducing conversion steps and improving overall system reliability.[4, 7, 11, 13, 14, 17, 19] The rapid expansion of electric vehicle (EV) charging hubs also benefits significantly from DC grids. EVs charge their batteries with DC, and local DC grids can directly connect batteries and DC charging stations, minimizing energy losses and enabling faster deployment of charging infrastructure, especially in off-grid or remote areas.[7, 10, 14, 17, 19, 24, 26, 27]

Beyond consumer and IT applications, LVDC grids are increasingly deployed in industrial and specialized applications. DC is the internal operating current for variable-frequency drives, heat pumps, uninterrupted power supply (UPS) systems, and electrolyzers used in green hydrogen production.[7, 14] In industrial settings, DC grids facilitate the efficient recovery of braking energy from machinery like robots and conveyor belts, feeding it back into the grid and reducing peak loads.[14] DC microgrids also offer robust and efficient power solutions for diverse needs, including agricultural farms and hospitals.[10, 17]

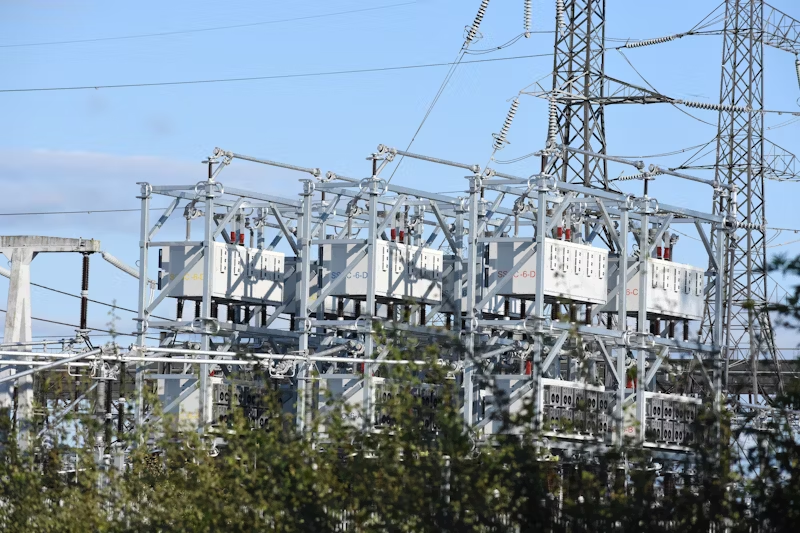

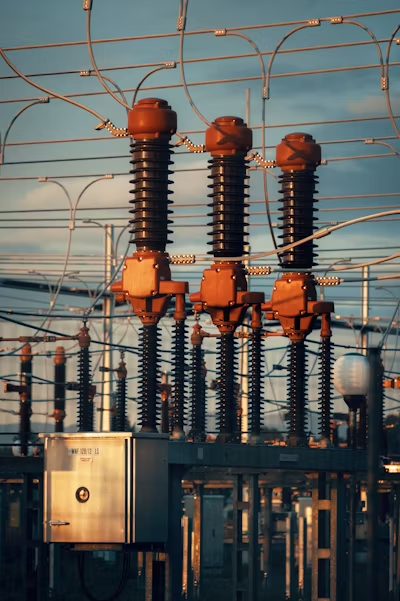

3.2. High Voltage Direct Current (HVDC) Transmission

High Voltage Direct Current (HVDC) transmission plays a critical role in large-scale power infrastructure. It is commonly employed for long-distance power transfer, enabling the transmission of vast amounts of electrical energy over extended ranges with fewer conductors and significantly less power loss compared to equivalent AC lines.[2, 3, 15, 16, 28] This makes HVDC an ideal solution for connecting remote generation sites, such as large hydroelectric power plants or distant renewable energy farms, to major urban load centers.[15, 16, 28]

HVDC systems also possess the unique capability of interconnecting asynchronous AC grids.[15, 16] This means they can link power systems that operate at different frequencies or are not synchronized in phase, which is invaluable for inter-regional or international power exchange.[2, 15] Examples include connecting the unsynchronized power grids of the UK, Northern Europe, and continental Europe, or bridging the 50 Hz and 60 Hz networks found in Japan or between Brazil and Paraguay.[15] Furthermore, HVDC is the preferred technology for submarine and underground cables, where overhead lines are impractical and AC systems would incur substantially higher electrical losses.[15, 16] This application is particularly crucial for integrating large-scale offshore wind farms into national grids.[15, 16]

The concept of multi-terminal HVDC grids represents an advanced evolution of HVDC technology. Increasingly complex multi-terminal systems are being built and planned globally.[29, 30, 31] These systems, often based on Voltage Source Converters (VSC-HVDC), can connect multiple AC grids to a hybrid AC/DC power system, forming what are sometimes referred to as "Super Grids" or "electric highways".[2, 16, 30, 31, 32, 33]

A significant underlying trend driving the widespread applications of DC grids, from residential microgrids to large-scale HVDC, is the increasing decentralization of energy generation and the growing electrification of various sectors. Decentralized generation, such as rooftop solar and local wind installations, often produces DC power natively, while many new loads, particularly in transportation (EVs) and industrial processes (DC motors), also require DC. This direct compatibility between DC generation and DC loads minimizes conversion losses, which are a major bottleneck in AC-dominated systems. This implies that as these trends accelerate, the demand for DC grid solutions will naturally increase, pushing the market towards greater adoption and innovation in DC technologies.

Table 2: Key Applications of DC Grids

4.1. Architecture and Topologies

DC grids are designed to interconnect multiple energy sources and sinks, ranging in scale from small, localized systems with shared DC buses to expansive applications like entire factories or data centers.[4, 34] Their architecture is characterized by various topologies, each offering distinct advantages and trade-offs in terms of complexity, reliability, and cost.

The Single-Bus (Radial/Feeder) Topology represents the simplest configuration, where renewable energy sources (RES) and loads connect to a common DC bus, often facilitated by DC/DC converters.[35] Energy Storage Systems (ESS) can be directly connected in a "passive" structure, which offers lower investment costs but necessitates voltage consistency between the ESS and the bus, making it susceptible to instability from changes in the ESS's state of charge.[35] Alternatively, an "active" structure connects the ESS via a DC/DC converter, allowing for active voltage regulation and improved stability.[35] A limitation of unipolar single-bus systems is their single voltage level and lack of redundancy, making them vulnerable to system instability during faults.[35]

To address the limitations of unipolar systems, the Bipolar Single-Bus Topology has emerged. This configuration typically employs three lines (DC+, 0, and DC-), enabling multiple voltage levels (e.g., ±170 V and 340 V).[7, 35] It offers enhanced stability and flexibility during fault conditions, as power can continue to be supplied through the remaining lines even if one line fails.[35]

The Multi-Bus Topology is a more flexible and stable derivative of the single-bus system. It provides redundant options to meet diverse demand-side requirements for different voltage levels and facilitates power exchange between interconnected microgrids.[35] In the event of a fault in one microgrid, it is automatically isolated from the rest of the system.[35]

For High-Voltage DC (HVDC) applications, particularly in large-scale systems like offshore wind power, the Multi-Terminal Bus Topology is common. This involves multiple energy sources feeding power into the DC system via AC/DC converters.[30, 31, 32, 35] Its primary objective is to achieve power balance and minimize voltage and frequency deviations between different units, thereby increasing system flexibility through multiple transmission routes.[35]

The Ring-Bus Topology connects RES, ESS, and loads to a circular power system through DC/DC converters, with Intelligent Electronic Devices (IEDs) acting as switches.[10, 34, 35] This configuration significantly enhances system flexibility during failures and maintenance, as a faulty unit can be isolated while other parts of the system continue to operate.[35] It is suitable for both low and high voltage DC systems.[35]

The Meshed Grid Topology is a more complex configuration that incorporates loops, providing redundant current paths.[10, 31, 32, 34, 35, 36, 37] This redundancy substantially improves overall reliability and flexibility, though it necessitates additional current routers to prevent power line overloads.[34, 36, 37]

Finally, the Zonal Topology represents a highly reliable DC microgrid structure, comprising multiple DC zones, each equipped with Distributed Energy Sources (DESs), power electronics, and protection devices.[35] Each zonal configuration features redundant DC buses, allowing loads to draw power flexibly from either bus and ensuring continuous operation in case of a fault by isolating the affected section.[35] This topology is notably employed in shipboard power systems.[38]

Table 3: DC Microgrid Topologies Overview

4.2. Key Components

The functionality and efficiency of DC grids are underpinned by several essential components that facilitate power generation, conversion, storage, distribution, and control.

Power Electronic Converters are fundamental to DC grids, acting as the interface between different electrical domains.[4, 7, 14] These devices enable the conversion of power between AC and DC (rectifiers and inverters) and between various DC voltage levels (DC/DC converters).[2, 3, 7] They are indispensable for integrating diverse energy sources and loads, as well as for controlling power flow and voltage throughout the grid.[7] Specifically, AC/DC converters are used to convert AC power from traditional generators or the main AC grid into DC, or vice versa.[2, 3] DC/DC converters are crucial for stepping DC voltage up or down to meet precise power requirements, regulating voltage for efficient battery charging, and actively managing energy storage.[7, 39] Modern DC/DC converters, such as the Dual Active Bridge Converter, employ advanced power electronic switching elements and high-frequency transformers to achieve compact designs and minimize losses.[7]

Distributed Energy Resources (DERs) form the generation backbone of many DC grids. These include renewable sources like photovoltaic systems (solar panels) and wind turbines, which often generate DC power intrinsically or can be efficiently integrated into DC grids via appropriate power electronic interfaces.[4, 7, 10, 11, 12, 13, 14, 17] Energy Storage Systems (ESSs), predominantly batteries, are vital for managing the intermittency of renewable energy sources and ensuring grid stability; these systems also inherently operate on DC power.[4, 7, 10, 11, 13, 14] Being inherently DC devices, batteries seamlessly integrate into DC grids, storing surplus energy during periods of high generation and providing power during deficits.

Loads within a DC microgrid are typically categorized into critical (e.g., those in hospitals or data centers, requiring uninterrupted power) and non-critical types.[13] Understanding and managing these loads are essential for efficient operation, particularly since many modern devices are DC-native, benefiting directly from DC power supply.[4, 5, 9, 14, 17]

Circuit Breakers and Switches are indispensable for current routing, disconnection, and fault protection. In DC systems, the absence of natural zero-crossings during faults makes fault interruption more challenging than in AC systems.[5, 40] Consequently, specialized DC circuit breakers, particularly Solid-State Circuit Breakers (SSCBs), which utilize semiconductors, are critical for safely and rapidly interrupting DC fault currents.[5, 8, 14, 40, 41] Finally, comprehensive Monitoring and Control Systems are necessary for the intelligent management of DC grids. These include energy meters for direct measurement of currents and voltages, protective relays, and robust communication infrastructure to enable real-time data acquisition and control.[4, 14, 38, 42]

4.3. Power Flow Control

Effective power flow control is paramount for the stable and efficient operation of DC grids, especially in complex meshed or multi-terminal configurations. In DC grids, power flow can be precisely managed through various methods, often leveraging advanced power electronic converters. For instance, in a meshed DC grid with N individual AC/DC converters, power flow can be controlled through N-1 distinct DC lines or cables.[36, 37]

A primary method involves the strategic placement of DC/DC converters at the ends of transmission lines. These converters can regulate power flow by precisely controlling the terminal voltage, and they are capable of bidirectional power flow regulation, allowing energy to move in either direction as needed.[36, 37] Another approach utilizes variable resistors embedded in series with DC lines or cables, which are switched by mechanical or semiconductor-based DC circuit breakers.[36, 37] While simpler in structure, this method inherently consumes power, making it less efficient for continuous regulation.

More advanced solutions include transformer-type DC Power Flow Controllers (DCPFCs). These devices, often based on modular sub-modules, can independently control DC power flow in both point-to-point and multi-terminal connections, suitable for high or medium voltage DC grids.[37] Furthermore, some sophisticated Current-Limiting DC Circuit Breakers (CL-DCCBs) integrate power flow control capabilities directly into their design, combining the functions of a power flow controller (PFC), fault current limiter (FCL), and DC circuit breaker (DCCB) into a single device, which can lead to cost reductions.[37]

4.4. Voltage Regulation

Maintaining a stable DC bus voltage is a critical operational objective in DC grids, particularly with the increasing integration of intermittent renewable energy sources and varying load profiles.[13, 18, 43, 44]

Droop control is a widely adopted primary control strategy for achieving power sharing among distributed generators (DGs) in DC microgrids.[44, 45, 46] This method establishes a proportional relationship between the voltage and the power output of each DG, allowing them to share the load autonomously without requiring direct communication between units.[44, 45] However, a known characteristic of conventional droop control is that it can lead to deviations of the DC bus voltage from its nominal value, especially under dynamic or varying load conditions.[18, 44, 45, 47]

To address these voltage deviations, secondary control is implemented as a higher-level control layer.[44, 45, 47] Its primary functions are to restore the DC bus voltage to its desired nominal value and to improve the accuracy of power sharing among DGs.[44, 45] This is typically achieved through a voltage compensation controller that sends corrective signals to all DGs within the microgrid.[44, 45] The use of DC/DC converters between energy sources and the DC bus also facilitates independent control of the DC grid voltage.[34] The controlled grid voltage can then serve as an indicator of the system's state, enabling basic communication (known as DC bus signaling) and facilitating load prioritization.[34]

Beyond traditional Proportional-Integral (PI) control, advanced control strategies are being developed to enhance stability and performance, particularly when dealing with challenging loads like Constant Power Loads (CPLs).[13, 44, 47] CPLs can introduce instability due to their incremental negative impedance (INI) effect, which can cause oscillations.[44] Solutions include fuzzy PI control, Particle Swarm Optimization (PSO) PI control [18], Sliding Mode Control (SMC), and H-infinity control.[44] Furthermore, adaptive virtual inertia control is being explored to improve voltage stability by enabling converters to rapidly absorb or release energy in response to power fluctuations, thereby mimicking the inertia found in traditional AC systems.[48]

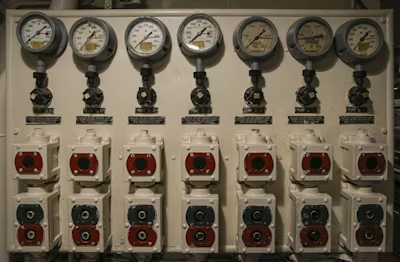

4.5. Control Mechanisms

DC microgrids typically operate under a sophisticated hierarchical control system, comprising three distinct levels: primary, secondary, and tertiary control.[13, 35, 44, 45] This layered approach allows for coordinated management across different timescales and operational objectives.

Primary control is the fastest layer, operating locally at each power converter within the microgrid.[35, 44, 45] Its responsibilities include local current and voltage control, as well as immediate power sharing among parallel-connected converters, often through droop control.[35, 44, 45] This layer typically responds within milliseconds (10-100 ms).[35]

Secondary control operates on a slower timescale, typically ranging from 1 to 10 seconds.[35] Its main purpose is to correct the voltage deviations introduced by the primary droop control and ensure accurate power sharing across the entire microgrid.[13, 35, 44, 45] Secondary control can be implemented in a centralized manner, where a single central controller manages the system, or in a distributed fashion, involving communication and coordination among multiple local controllers.[13, 35, 44, 45]

The highest level is tertiary control, often referred to as the Energy Management System (EMS).[13, 35, 45] This intelligent computing system operates on the slowest timescale, typically over 5 minutes.[35] Its functions include regulating power flow exchange between the DC microgrid and the main grid, optimizing power consumption for economic efficiency and sustainability, and performing higher-level tasks such as data monitoring and load forecasting.[13, 35, 45]

Beyond this hierarchical structure, DC grids employ different control paradigms. Distributed control involves each controller acting as an individual agent, exchanging information with neighboring controllers through sparse communication links to achieve coordinated control.[13, 35, 38] This approach enhances scalability, resilience, and fault tolerance.[13] In contrast, centralized control relies on a single central controller that adjusts local controllers via a low-bandwidth communication system, gathering system status and making decisions.[35, 38, 46] While capable of precise control, it introduces a single point of failure. Decentralized control involves local controllers regulating Distributed Energy Sources (DESs) using only local information, without awareness of the entire system or neighboring controllers.[13, 35] This method is simpler but lacks system-wide coordination. For large-scale HVDC operations, SCADA (Supervisory Control and Data Acquisition) systems play a critical role in monitoring and controlling power flow, collecting real-time data from devices to ensure safe and efficient transmission, identify faults, and maintain grid stability.[28]

The interplay of control layers for robustness is a critical design aspect. The hierarchical control structure (primary, secondary, tertiary) is a sophisticated engineering choice designed to manage the inherent trade-offs in DC grid operation. Primary control provides rapid, local responses for immediate stability and power sharing, but this often comes with a compromise in terms of precise voltage regulation. Secondary control then operates on a slower timescale to meticulously correct these voltage deviations and ensure overall system health and accurate power sharing, demonstrating a layered approach to enhancing robustness. Tertiary control, as the slowest layer, focuses on broader economic optimization and grid-wide energy management. This layered approach allows for both rapid local response to disturbances and stable global operation, which is particularly crucial for effectively integrating intermittent renewable sources and managing dynamic loads. The ongoing development of advanced control strategies, such as Sliding Mode Control, H-infinity control, and adaptive virtual inertia control, further underscores the complexity and paramount importance of precise control in DC systems, especially given their inherently low inertia nature.[48, 49] This multi-layered control architecture is fundamental to the reliable and efficient functioning of modern DC grids.
